What Are Mechanical Shear-Head Lugs?

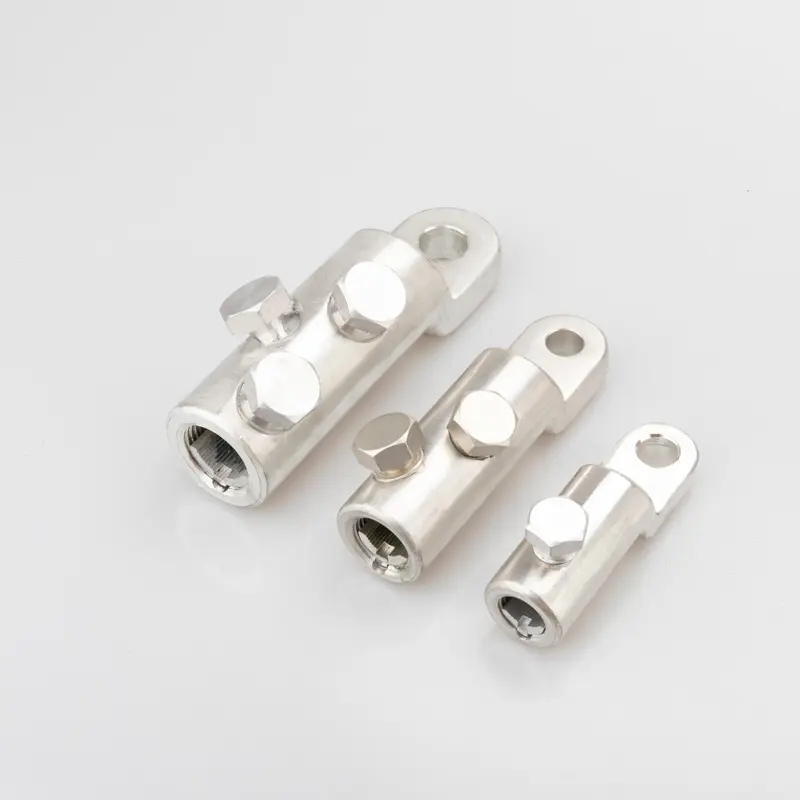

Mechanical Shear-Head Lugs Mechanical shear lugs are electrical connectors designed to achieve highly secure connections between cables and busbars. Mechanical shear lugs utilize a special bolt mechanism which shears off at a predetermined torque, thus providing perfect clamping force without any need for special equipment. This feature guarantees the reliability of electrical connections, as the chance of making mistakes during installation is minimized, thus making these lugs the preferred choice for modern power distribution systems.

Types of Mechanical Shear-Head Lugs

The designs of mechanical shear-head lugs are differentiated depending on their intended use:

Single-Bolt and Multi-Bolt Lugs: Single-bolt and multi-bolt options cater to cables of different sizes. Single-bolt lugs offer an appropriate solution for smaller cables whereas multi-bolt options impart better stability and strength for bigger cables and installations that deal with high currents.

Universal Lugs: These lugs are suitable for a variety of cable types and sizes, thus simplifying the management of stock and providing flexibility in various projects.

Specialized Variants: The use of lugs with improved insulation, anti-corrosion coatings, or unique designs for aluminium and copper allows their use in extreme or specialized environments.

When they choose the right option, installers guarantee best performance and durability of their electrical systems.

Key Benefits of Mechanical Shear-Head Lugs

Numerous benefits attributed to mechanical shear-head lugs have made it possible for their extensive use in electrical engineering.

Consistent and Secure Connections: The shear-head mechanism assures precise torque accuracy at all times and gets rid of any ambiguities while assuring consistent contact.

Tool-Free Installation: For most mechanical shear lugs, it is possible to use just a standard wrench, thus making the process easier and reducing time and labor costs as a result.

Adaptability: Various designs, sizes, and materials are compatible with these lugs for conductors. As a result, these lugs fit new installations and reconstructions.

Enhanced Durability: Strong materials and protective layers can withstand vibrations, thermal cycling, and corrosion, and require little maintenance.

Cost Efficiency: Faster installation, reduced rework, and simplified inventory translate into lower project costs.

Common Applications and Uses

Mechanical shear-head lugs meet the requirements of various industries that require reliable wire connections:

Power Distribution: The use of cable termination is common in substations, switchgear, and transformers as it improves operational safety of important electric networks.

Industrial Settings: Production facilities utilize mechanical shear bolt cable lugs for efficient equipment setup.

Renewable Energy: The outdoor environment is a rough one and is known for the speed and efficiency of solar and wind power systems along with their durability provided by their corrosion-resistant material.

Construction and Infrastructure: The use of these lugs helps to facilitate installation in large buildings, railways, and airports, making performance stable and maintenance easy.

Utility Upgrades: When it comes to upgrading or retrofitting electrical grids, shear-head lugs make the installation process easier and cause less inconvenience to users.

Installation Best Practices

The use of mechanical shear-head lugs simplifies the installation procedure and guarantees effectiveness. The necessary steps of the procedure consist of cable preparation, placement, the tightening of the bolt until the head shears, and inspection. It is important to follow the directions given by the manufacturer to ensure compatibility and the correct installation depth. In difficult conditions, it is necessary to use advanced lugs. Regular inspections help to keep the system functioning normally.

Mechanical Shear-Head Lugs vs. Traditional Lugs

Unlike solder and compression lugs, mechanical shear-head lugs offer uniform torque without a risk of bad connections. Compression lugs require specialized devices and experienced installation crews, whereas shear-head lugs only need a wrench for the installation process, which makes it more effective and minimizes human errors.

FAQ: Mechanical Shear-Head Lugs

What Types Are Available?

The variations comprise single-bolt, multi-bolt, universal, and custom-made options tailored for particular conductor substances and conditions.

What Are the Key Benefits?

These devices provide reliable electrical performance, simple installation, adaptability, longevity, and cost efficiency.

Where Are They Used?

In applications concerning power distribution, industrial facilities, renewable energy, construction for businesses, and upgrades of utilities.

How Are They Installed?

Prepare the cable, insert into the lug, tighten the bolts until the head is broken, and inspect as instructed.

Are They Suitable for Aluminum and Copper?

Most shear-head lugs work in both, but be sure to check the manufacturer’s specifications for compatibility.

Mechanical shear-head lugs provide high-quality, effective, and simpler installation cable connections for various electrical usages. Their special shape meets modern requirements of safety, practicality, and affordability and offers a great option for electrotechnics professionals.
