What Are Pre-Insulated Lugs?

Pre-Insulated Lugs are critical elements in the process of electrical wiring as they merge a conducting terminal with a protective insulation cover. The manner of construction has simplified the process of making secure connections between wires and devices. As a result, there is no requirement for the manual insulation process and errors have been minimized significantly. The lugs ensure that the circuit operates normally in difficult conditions.

Key Features & Materials

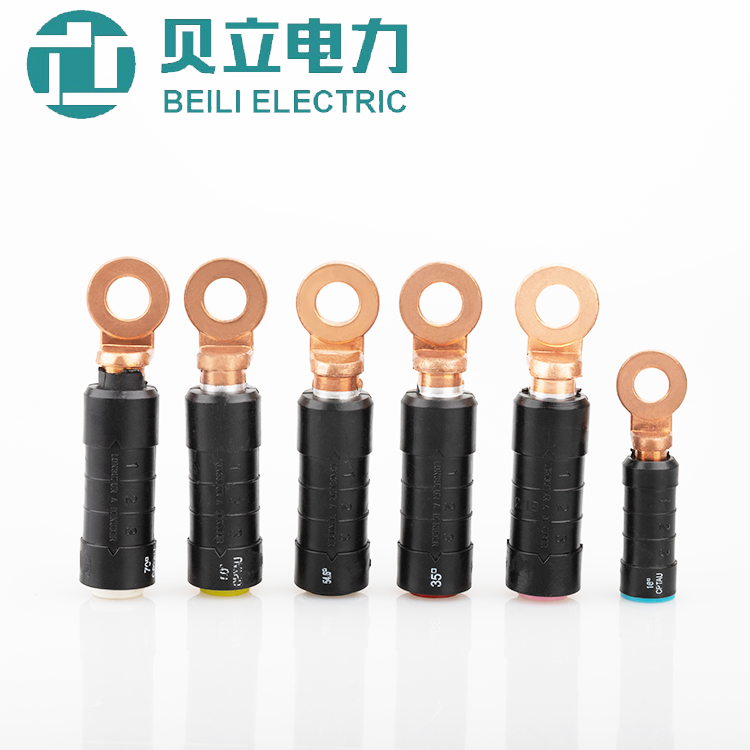

High-quality pre-insulated lugs are made from metals like aluminum and copper which have good conductivity. The insulating material, which could be polyamide, PVC and polyolefin, has strong resistance to heat, corrosion and moisture. The color of the sleeves makes it easy to identify the lug and reduce mistakes. Some kinds of pre-insulated bimetallic lugs are also available which join copper with aluminum cable therefore preventing corrosion. Other kinds of lugs include different types of pre-insulated ring lugs which offer various connection options. The pre-insulated lugs are reliable and safe to be used in tight spaces.

Applications of Pre-Insulated Lugs

Various applications can take advantage of the flexibility of pre-insulated terminals. Their use in domestic electrical setups ensures safe and neat fittings of plugs and devices. On the other hand, business undertakings need these products for complex networks of wiring used in hospitals, offices, or stores with their convenient color identification system. Pre-insulated terminals are also needed in industry due to their solid design, which allows them to withstand vibrations of coverage made of aluminum connected to copper devices. In addition, automotive and marine sectors apply them in battery connections and grounding, while green energy applications utilize these terminals for solar cells and wind turbines.

How to Choose the Right Pre-Insulated Lugs

Choosing the right lug starts with checking the cable size and connector type, which helps you find a lug with the needed conductivity and strength. Also consider the working environment—water, acids, or high temperatures require lugs with strong insulation and resistance. Keep copper and aluminum separate; use pre-insulated bimetallic lugs to prevent corrosion. Connector shape matters too: pre-insulated types give reliable connections, while spade types allow easy disconnection later. Always confirm that reliable suppliers provide data sheets and certifications.

Benefits of Pre-Insulated Lugs in Electrical Installations

Utilizing pre-insulated cable lugs provides numerous benefits, including speedy, mistake-free installation, decreased labor costs, and enhanced safety. The insulation which is applied at the factory provides protection against electrical shock and minimizes contact with live wires. The color-code helps in troubleshooting and firm crimping ensures the connection is resistant to vibration and movement. The best quality lugs meet the industry standards which gives enough comfort to the professionals and reduces the chances of costly fault during the operation.

Frequently Asked Questions About Pre-Insulated Lugs

Can pre-insulated lugs be reused after crimping?

No. Once crimped, they are designed for a permanent connection and should not be reused.

How do I know which color lug to use?

The color usually matches a specific cable size or current rating. Check the supplier’s chart for accuracy.

Are pre-insulated lugs suitable for outdoor use?

Many are, but you should choose ones with UV-resistant and waterproof insulation for outdoor or wet environments.

What tools are needed to crimp pre-insulated lugs?

A proper crimping tool designed for insulated terminals is required to ensure a secure and safe connection.

Pre-Insulated Lugs and Electrical Safety

Safety is enhanced with the use of pre-insulated cable lugs, as there is less risk of undesired contact, less chance of electric shock and lower fire hazards involved. The insulated sleeves protect both the installer and his work, including areas with a high concentration of equipment or potential hazards. Bimetallic types ensure that dissimilar metals remain free from corrosion.

Pre-insulated lugs have changed electrical installations by combining safety, effectiveness, and long-lasting reliability. Being aware of their characteristics, applications, and criteria for selection allows one to optimize its wiring systems, decrease maintenance requirements, and make its infrastructure secure. The use of quality pre-insulated lugs plays a key role in promoting the protection of electrical networks and achieving safety standards compliance.
