It is essential to choose the right ABC suspension clamp to maintain the stability and safety of aerial power lines. You can use this guide to get an overview of the factors to be considered and to know the various types.

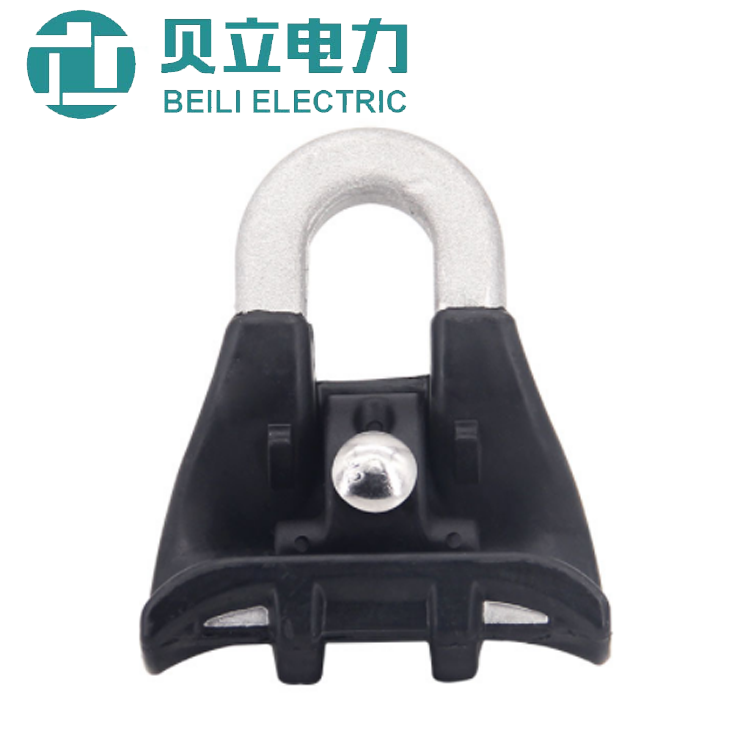

Understanding ABC Suspension Clamps

ABC suspension clamps are essentially used for suspending aerial bundled cables (ABC) in electrical distribution systems where it has a capability to suspend and secure the cables while permitting movements and adjustments depending on wind and temperature changes. This demonstrates that right selection of clamp is important in the preservation of installation process and prevention of cable damage.

Types of ABC Suspension Clamps

According to the type of purpose, suspension clamps of varying kinds can be found in the market.

1. Standard Suspension Clamps: These are commonly used for general transmission purposes and can accommodate various cable sizes.

2. Adjustable Suspension Clamps: Ideal for installations where cable tension may vary, allowing for adjustments to be made easily.

3. Insulated Suspension Clamps: These clamps are made to offer extra safety from electrical shocks, which makes them appropriate for places nearby high voltage lines.

4. Heavy-Duty Suspension Clamps: These clamps are built to withstand extreme weather conditions and high load applications.

Suspension Clamp vs Tension Clamp: Key Differences

Even though suspension clamps and tension clamps are both essential tools in the installation of cables, their functions are different. The main application of suspension clamps is to support the weight of the cable suspended from the poles. On the other hand, tension clamps help ensure that the cable maintains the desired tension over larger distances and does not sag.

Key Factors to Consider Before Buying

When selecting an ABC suspension clamp, there are several key factors to consider:

1. Cable Size and Compatibility: Be sure to select a clamp that is suitable for the diameter and type of cable you work with. Reference the manufacturer’s specifications to ensure that you use a clamp that is appropriate for the cable size.

2. Environmental Conditions: Take into account the installation environment. If the location has a history of being hit by high winds, heavy snowfalls or harmful chemicals, choose clamps that can endure these conditions.

3. Load Requirements: Establish the loads which the clamp will have to bear, with the cables’ weight as well as external elements’ load factors.

4. Compliance and Standards: Make sure the clamps meet applicable standards and regulations governing the industry in order to provide safety and reliability.

Cable Size and Compatibility Guide

When analyzing cable dimensions and ensuring compatibility, one must be familiar with the specifications preset by the manufacturer. This will assist in choosing a clamp that can adequately bear the weight of the cable and allow for future adjustments or addition of the electrical system.

In conclusion, it is important to take into account cable dimension, environmental factors, load conditions and industry requirements when choosing the proper ABC suspension clamp. Your diligence in making the right choice will certainly improve the safety and reliability of your aerial cable installations.
