In insulation products, Pre-Insulated Joint Sleeves play an essential part in ensuring that heat is retained and energy is used efficiently. Found in a wide construction of businesses, these sleeves have a very important function for keeping insulated systems effective while being widely used in heating systems and industries. This comprehensive guide will provide the reader with all the necessary information regarding Pre-Insulated Joint Sleeves.

What Are Pre-Insulated Joint Sleeves?

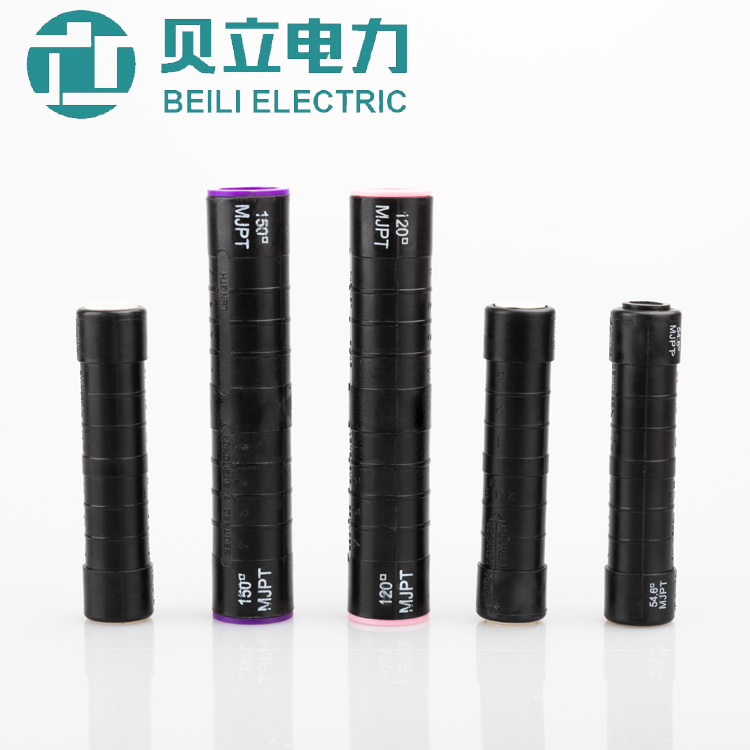

Pre-Insulated Joint Sleeves These sleeves are made to protect the joints in insulation joints connected in electrical circuits. They are made specially for connecting copper and aluminum wires. They are used in distribution networks as well as in below 1 kV ABC. The sleeves are manufactured from aluminum or aluminum alloy. The center of the sleeve holds a stop which is positioned at the center of the neutral bus. The black thermoplastic cover of the sleeve closes the joint tightly with the help of a flexible elastomer ring.

How Do Pre-Insulated Joint Sleeves Work?

Pre-insulated joint sleeves have a simple operational procedure. They are put on the joint of insulated pipes to seal it from the surrounding environment, thereby making sure that the temperature in the piping system is preserved and minimizing heat losses. The insulation material in the sleeves provides not only thermal efficiency, but also durable and reliable operation against mechanical impacts in industrial conditions. At the same time, pre-insulated joint sleeves serve the purpose of connecting insulated aluminum conductors.

Types of Pre-Insulated Joint Sleeves

Different types of Pre-Insulated Joint Sleeves are available, each suited for certain uses. Some of the more common types are:

• Polyurethane Joint Sleeves: Known for their excellent thermal insulation properties and resistance to moisture.
• EPS (Expanded Polystyrene) Sleeves: Lightweight and cost-effective, suitable for lower temperature applications.
• Mineral Wool Sleeves: Ideal for high-temperature environments where fire resistance is crucial.

Where Are Pre-Insulated Joint Sleeves Used?

Pre-Insulated Joint Sleeves find their applications in a range of industries. Some of the most common uses include:

• District Heating Systems: Providing insulation for hot water pipes to ensure thermal energy is effectively delivered.
• Industrial Facilities: Protecting insulated piping systems in chemical plants and manufacturing units.
• Renewable Energy Projects: Used in geothermal and solar thermal applications to enhance energy efficiency.
• Electrical Distribution: Particularly helpful for linking copper and aluminum wires and ABC cables in distribution systems below 1 kV.

Thanks to their flexibility, pre-insulated sleeves are not limited to new developments, but are also essential for maintaining existing systems and continuing their performance throughout their life cycle.

Frequently Asked Questions (FAQ)

What Are Pre-Insulated Joint Sleeves?

They act as protective coverings for joints in insulated piping systems and are designed to prevent loss of heat and ensure effective energy usage via interconnected wires made of aluminum or copper within the supply networks.

How Do Pre-Insulated Joint Sleeves Work?

Insulation is used to seal pipe connections thus keeping warmth in the systems while providing protection against external damage.

Types of Pre-Insulated Joint Sleeves?

The types that are being commonly used such as polyurethane, expanded polystyrene, and mineral wool sleeves serve specific purposes, and they are used in certain temperature ranges.

Where Are Pre-Insulated Joint Bushings Used?

The items in question are implemented in district heating systems, various industries, projects in the field of renewable energy, and primarily in power distribution systems in which the cables of aluminium and copper are linked.

In conclusion, Pre-Insulated Joint Sleeves play a vital role in ensuring energy efficiency and integrity of insulated pipe systems. These devices find application across industries, proving their adaptability and significance in the market. When one understands how these joints function, what types exist, and where they can be applied, it will certainly lead to wiser decisions for effective insulation techniques that bring efficiency and sustainability into business operations.
