The Bunched Cable Strain Clamp is an essential device used for anchoring and clamping bundled cable groups, particularly in aerial power lines and aerial bundled cable systems. Made from tough materials such as aluminum alloys and galvanized iron, these clamps work to relieve forces and avoid cable sagging and breakage. Their design allows for secure gripping without endangering the insulation of the cable.

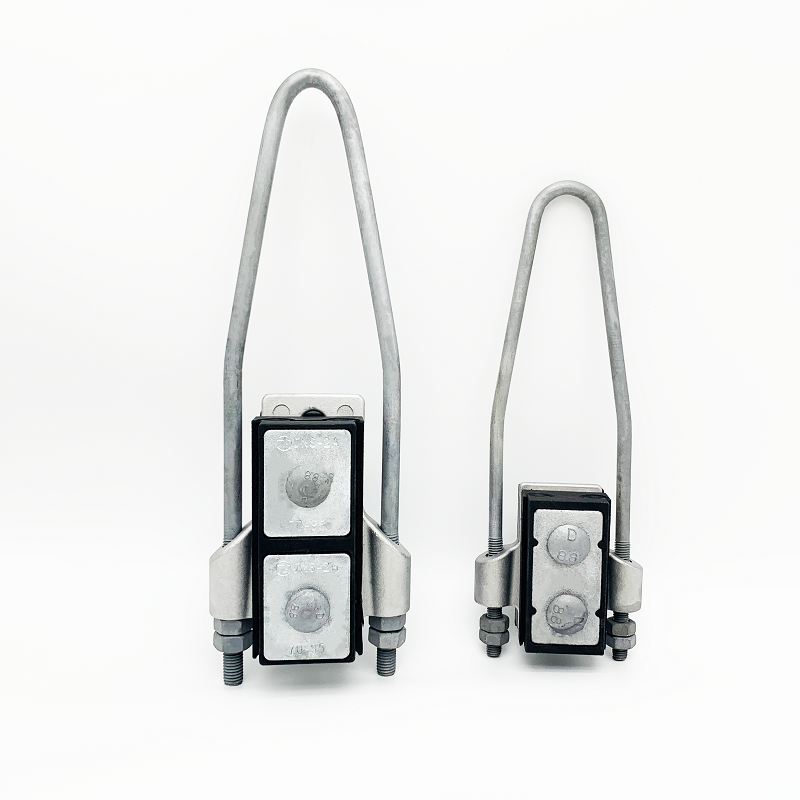

What Is a Bunched Cable Strain Clamp?

The Bunched Cable Strain Clamp is an instrument that is used to secure and adjust tension in bundles of conductors over a distance on power lines. This device has clamps or wedges that enable them to hold a cable together. Most clamps are made with corrosion-resistant materials which make them easy to install and create proper tension for conductors placed on wire or insulated cables.

Tools and Materials Needed for Installation

You will need some common tools for assembling a bunched cable strain clamp. First, you will need a torque wrench or adjustable spanners for tightening the cable clamp. Similarly, there will be a need for cable cutters during the preparation of the assembly and measuring tape. In addition, always remember to put on your personal protective equipment such as insulated gloves, safety goggles, and hard hat. Confirm that the bunched cable strain clamp conforms to the cables diameter and keep the extra protection like corrosion-resistant compounds if necessary.

Step-by-Step Installation Guide

An appropriate installation is necessary for your security and durability. As the first step, examine the location and get the cable ready by cutting it on the right length and allowing the insulation to remain untouched. Select the correct clamp style and location and apply torque uniformly through a wrench in order not to harm the cable. Inspect the clamp visually and check for any misalignment.

Key Safety Tips for Bunched Cable Strain Clamp Installation

Safety should be of utmost importance during the installation of cables. Before undertaking any task it is important to first switch off the electric circuit, wear appropriate PPE, and make sure that the used tools are safe for electrical and mechanical use. Respect torque specifications while tightening to prevent the appliance from getting broken. In addition to this, check the state of the tool used (clamp) and the cable on defects, and maintain cleanliness at the working area to ensure no accidents.

FAQ About Bunched Cable Strain Clamp Installation

What Is a Bunched Cable Strain Clamp?

This device is referred to as a mechanical clamp due to its application in anchoring and applying tension to bundles of cables while maintaining joint stability in crucial areas on overhead lines.

Which tools are required?

Torque wrench, cable cutter, PPE, and measuring tape.

How do I ensure proper tension?

Use a calibrated torque wrench and inspect cable sag visually.

Can these clamps be used with insulated cables?

Yes, most are suitable for insulated cables and may include protective sleeves.

The Bunched Cable Strain Clamp is critical for reliable and safe installation of cables. Be sure to choose the right type of clamp and tools to avoid complications during installation. By making sure the installation is done professionally and that maintenance is done regularly, the cables will work properly for a long time with minimal risks involved.
