CS Substation Suspension Clamp

Short Description:


Product Detail

Product Tags

Description:

Suspension clamps are mainly used for overhead power lines. Wires are suspended from insulators or lightning conductors are suspended from pole towers through connection fittings.

Traditional malleable cast iron clamps have the disadvantages of large hysteresis loss, large hole current loss, and bulky products. The aluminum alloy clamp has the advantages of extremely small hysteresis loss and eddy current loss, light weight, and convenient construction. It meets the requirements of energy saving and consumption reduction in the national power grid transformation and construction.

When the suspension clamp is used for aluminum stranded wire and steel core aluminum stranded wire, it can be wrapped with aluminum sheathing or protective wire to protect the wire. The applicable outer diameter of the wire includes wrappings.

The energy-saving products developed by our company have passed the inspection of the Quality Inspection and Testing Center of the Ministry of Electric Power Industry, meet the requirements of GB2314 and relevant standards, and have passed the national energy-saving certification.

Percentage of suspension clamp gripping force to rated tensile force of wire:

Wire Class

Wire Structure(Aluminum Ratio)

Percent

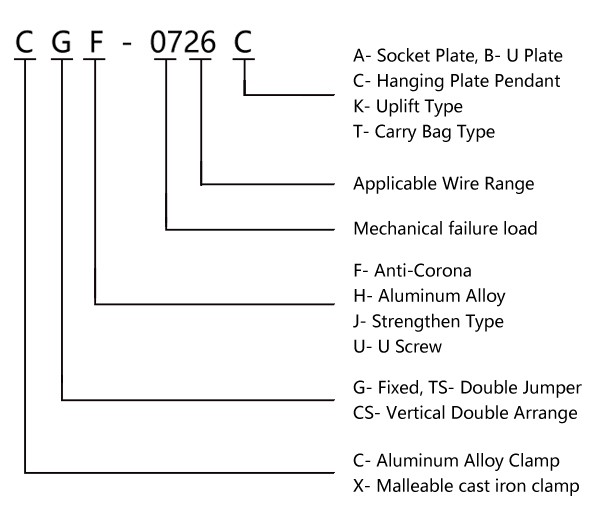

 CS Substation Suspension Clamp1

ACSR
(Steel core aluminum stranded wire)

>1.7

12

4.0-4.5

18

5.0-6.5

20

7.0-8.0

22

11.0-20.2

24

Steel stranded wire

Ultimate strength 1176-1274

14

Aluminum stranded wire



30



Type

Enterprise Standard Model

Suitable for Wire Diameter Range
(Including Wrapped)(mm)

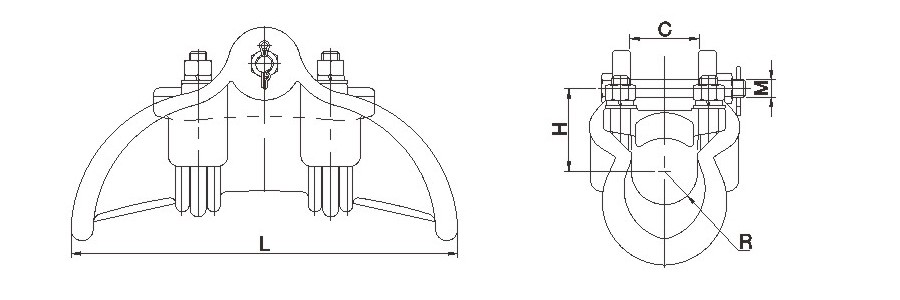

Main Dimensions
(mm)

Nominal Failure Load
(kN)

Weight
(kg)

H

L

R

C

M

CS-51

CGF-7054

40.0~54.0

73

350

27

56

16

70

5.6

CS-57

CGF-7060

53.0~60.0

75

350

30

62

16

70

6.2

 CS Substation Suspension Clamp2

The clamp body and pressure plate are made of aluminum alloy, the closed pin is made of stainless steel, and the rest are made of hot-dip galvanized steel.
